性能规范Property and specifiecation

产品型号Product type公称压力PN(MPa)Nominal pressure

试验压力(MPa)Test pressure

工作压力(MPa)Working pressure

工作温度(℃)Working temperature

适用介质Appicable medium

强度试验Sheel test

密封试验/上密封实验Seal test

Z960Y-250

25

37.5

27.5

-

≤425

水、蒸汽、Water,steam

Z960Y-320

32

48.0

36.0

-

≤425

Z960Y-P54100

-

30.0

22.0

P5410

≤540

蒸汽Steam

Z960Y-P54170

-

48.0

36.0

P5417

≤540

主要零件材料Matecrial for main parts

零件名称Part name

材料牌号Material designation

阀体Body

WCB

WC6

WC9

阀板Disc

WCB

WC6

WC9

阀盖Bonnet

25

12Cr1Mo1VA

阀杆Stem

1Cr17Ni2

20Cr1Mo1VA

阀座Seat

25

12Cr1Mo1VA

密封环Sealing ring

S软钢(增强柔性石墨)S soft steel (flexible graphite)

S软钢S soft steel

F软钢F Soft steel

填料Packing

增强柔性石墨Fexible graphite

支架Yoke

WCB

WCB或WC6

阀杆螺母Stem nut

45(ZCuZn25A16Fe3Mn3)

四开环Four piece ring

1Cr13

20Cr1MoVA

公称通径DNNominal diameter

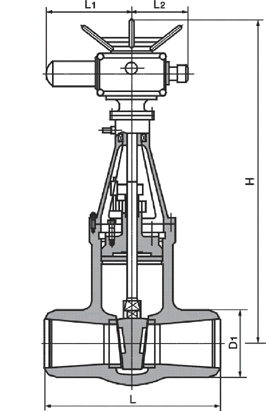

主要外形尺寸和连接尺寸(mm)Main external and connecting dimensions

电动装置Electric dewice

重量(kg)Weight

d

L

H

L1

L2

Z960Y-250

100

84

406

1164

437

277

DZW45

234

125

100

483

1402

437

277

DZW60

343

175

158

711

1650

554

309

DZW180

638

225

200

864

1650

554

309

DZW180

654

300

280

1067

2106

764

398

DZW350

1973

Z960Y-320

100

96

533

1236

437

277

DZW60

291

125

118

610

1302

437

277

DZW60

315

150

148

762

1403

526

283

DZW90

672

175

148

762

1650

554

309

DZW180

684

225

222

1041

1650

554

309

DZW180

696

Z960Y-P54100V

175

148

762

1650

554

309

DZW180

683

225

222

1041

1650

554

309

DZW180

704

250

222

1041

1795

554

309

DZW180

1214

300

294

1245

2080

554

309

DZW250

2125

Z960Y-P54170V

125

98

630

1230

437

277

DZW60

312

225

186

1060

1680

554

309

DZW180

1401

300

278

1397

2265

764

DZW500

2834

325

310

1448

2265

690

398

DZW500

2632

350

338

1550

2536

715

DZWC-4

5591
